Product Description

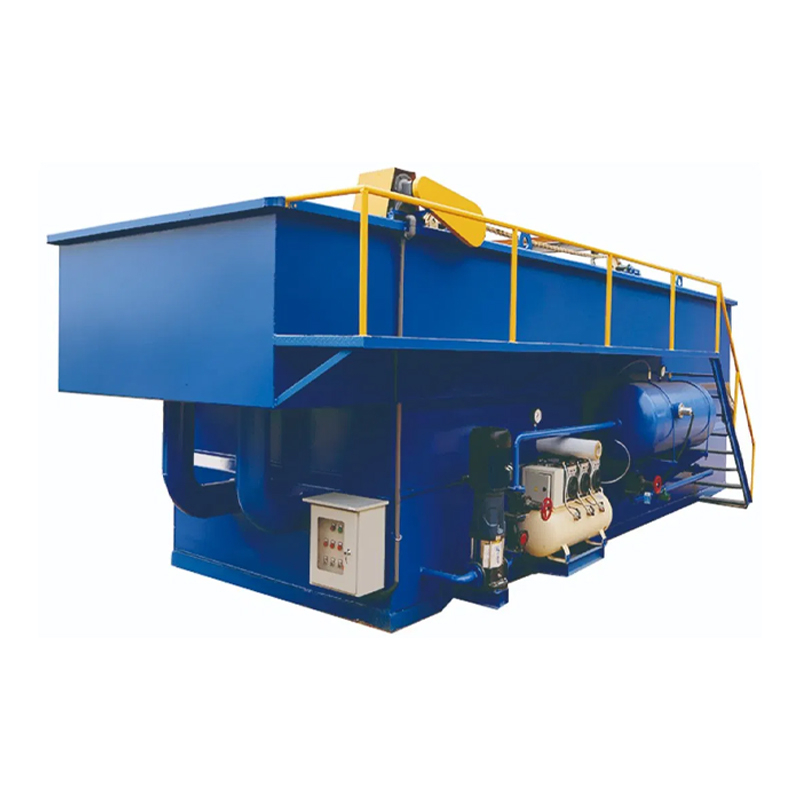

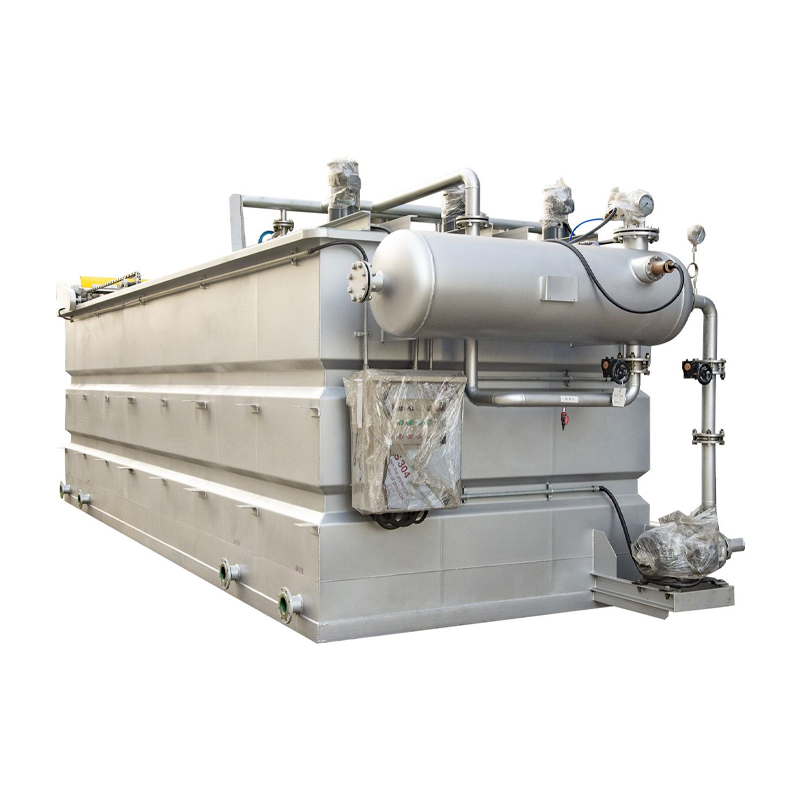

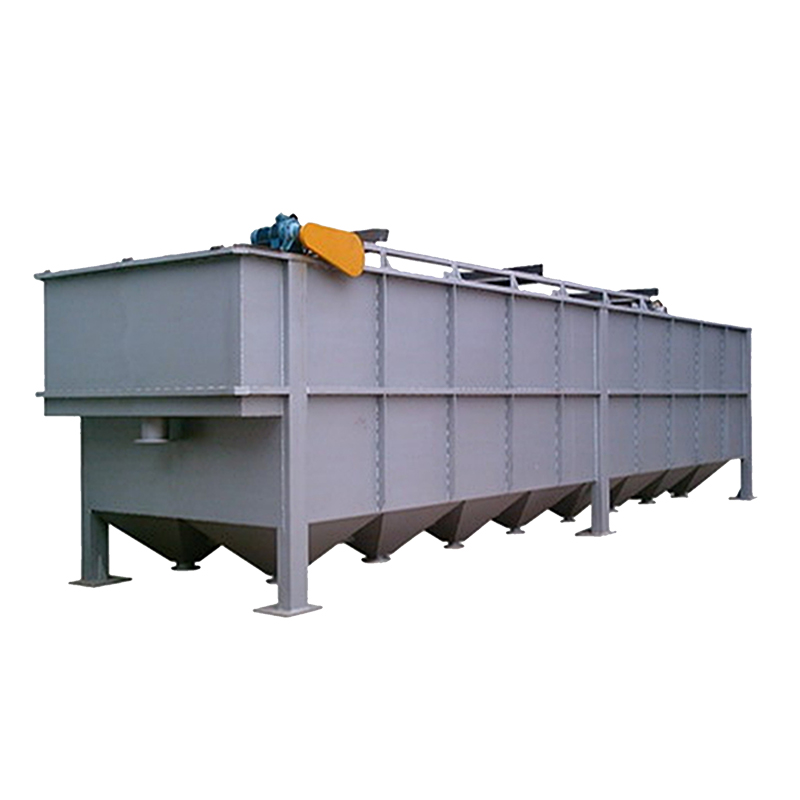

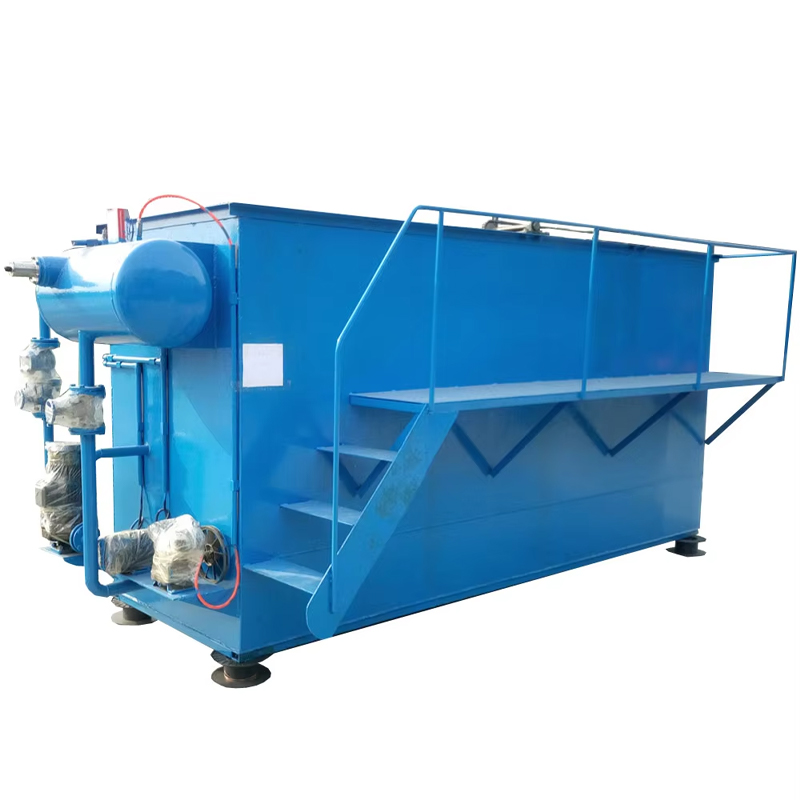

The DAF System, high efficiency dissolved air flotation (DAF Unit) is composed of high efficient air dissolving system and designed according to the fifth-generation of solid-liquid separation technology, which make the dissolved air flotation equipment (DAF) very efficient in removing organic and inorganic suspended matters, flocs, oil and grease from sewage, wastewater, industrial effluent, rivers purification, seawater desalination process and used in many other applications as a clarifying and purifying system.
Product Parameters
| Model | Capacity (T/H) | Empty weight (T) | Running weight (T) | Installed power (kW) | Operating Power (kW) |
| DAF1 | 1 | 1.1 | 3.5 | 1.6 | 1.27 |
| DAF3 | 3 | 3 | 8 | 4.75 | 4.42 |
| DAF5 | 5 | 3 | 8 | 4.75 | 4.42 |
| DAF10 | 10 | 4 | 12 | 4.75 | 4.42 |
| DAF25 | 25 | 5.5 | 21 | 5.65 | 5.52 |
| DAF50 | 50 | 7 | 36 | 8.5 | 7.65 |
| DAF80 | 80 | 9 | 55 | 11.05 | 10.2 |
| DAF100 | 100 | 12 | 70 | 16.2 | 14.9 |
| DAF150 | 150 | 16 | 110 | 21 | 19.3 |
| DAF200 | 200 | 26 | 160 | 25.9 | 23.5 |
Working Process
1. The chemical dosing system Controlled by the electrical panel, the Powder Dosing system can run in Automatic or manual mode. In Automatic cycle, when the level of the solution is low, and the chemical dosing unit rotary sensor of the powder detect a full hopper, the water solenoid valve is activated and the powder feeding system starts, leading to pre-mixing in a cyclonic movement before entering the first mixing tank.
2. The Flocculant dosing system tank is divided into three compartment: mixing tank, maturation tank, and service tank. Each one has its own mixing device, to assure total dissolution of the chemical powder.
3. The powder dosing system mixers are in continuous stirring action in order to assure the polymer dosing homogenous solution before delivery. The chemical dosing or polymer pumping system is easily connected to the chemical dosing unit, with special protection from dry run. The polymer dosing system provided continuous ready solution.
