1. Main uses

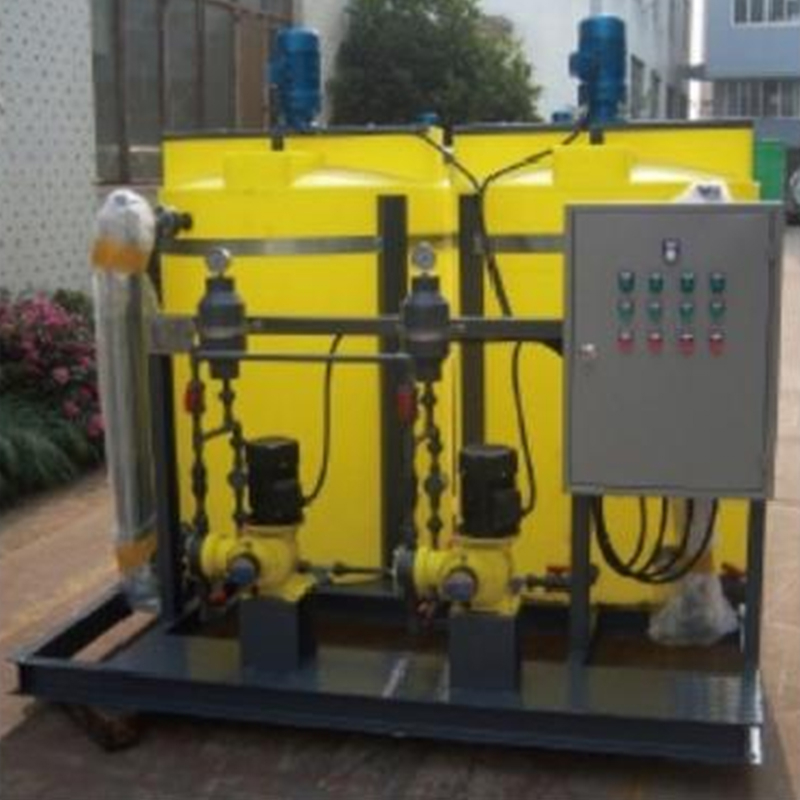

WA series dosing equipment is equipped with a fiberglass chemical dissolving tank, an electric mixer, two chemical solution tanks, a dosing device and piping, steel platform, escalator, etc. to form a whole
2. Structure and working principle
The equipment uses a jet mixer, which uses high-speed hydraulic power to disperse the agent or powder to increase fineness, increase the contact between the agent or powder and water, the penetration area, and shorten the dissolution time. The equipment uses a three-tank overflow combination, namely preparation, aging and dosing. It uses gravity and solubility to generate the specific gravity difference of the solution, automatically separates the dissolved and undissolved, and then stirs with a low-speed stirrer to improve the uniformity of the solution.
3. Main technical parameters and installation dimensions table
code name | Dosing equipment combination form |
A | A set of dosing equipment |
B | Two sets of dosing equipment |
code name | Dosing method |
1 | Metering pump |
2 | Ejector with rotor flow meter |
3 | injector |
model |
Dosing method | Overall dimensions Length×width×height (m) | Motor power(KW) | Piping diameter (mm) | Scope of application | Water pressure at the nozzle | |||||||
mixer | Metering pump | Melting tank water supply pipe A | Ejector water supply pipe B | Pharmaceutical properties | Drug concentration | Water temperature℃ | Ph value | gutter | Melting tank water supply pipe A | Ejector water supply pipe B | |||
WA-0.3/ 0.72A-1 | Small base series metering pump (see note 1) | 2.68×1.60×2.35 | 0.37 | 2×0.37 | 1×DN25 | ||||||||
WA-0.6/ 1.44B-1 | Small base series metering pump (see note 1) | 2.68×2.60×2.35 | 2×0.37 | 4×0.37 | 2×DN25 | Water stabilizer: coagulant, etc. |
<50 |
≤9 | Use dissolving tank and dissolving tank to discharge sewage | ≥9.8x104 |
≥28.4x104 | ||
WA-0.3/ 0.72A-2 | Ejector with rotor flow meter | 2.68×1.60×2.35 | 0.37 | 1×DN25 | 1×DN25 | ||||||||
WA-0.6/ 1.44B-2 | Ejector with rotor flow meter | 2.68×2.60×2.35 | 2×0.37 | 2×DN25 | ×DN25 | ||||||||
WA-0.3/ 0.72A-3 | injector | 2.68×1.60×2.35 | 0.37 | 1×DN25 | ×DN25 | ||||||||
WA-0.6/ 1.44B-3 | injector | 2.68×2.60×2.35 | 2×0.37 | 2×DN25 | 1×DN25 | ||||||||

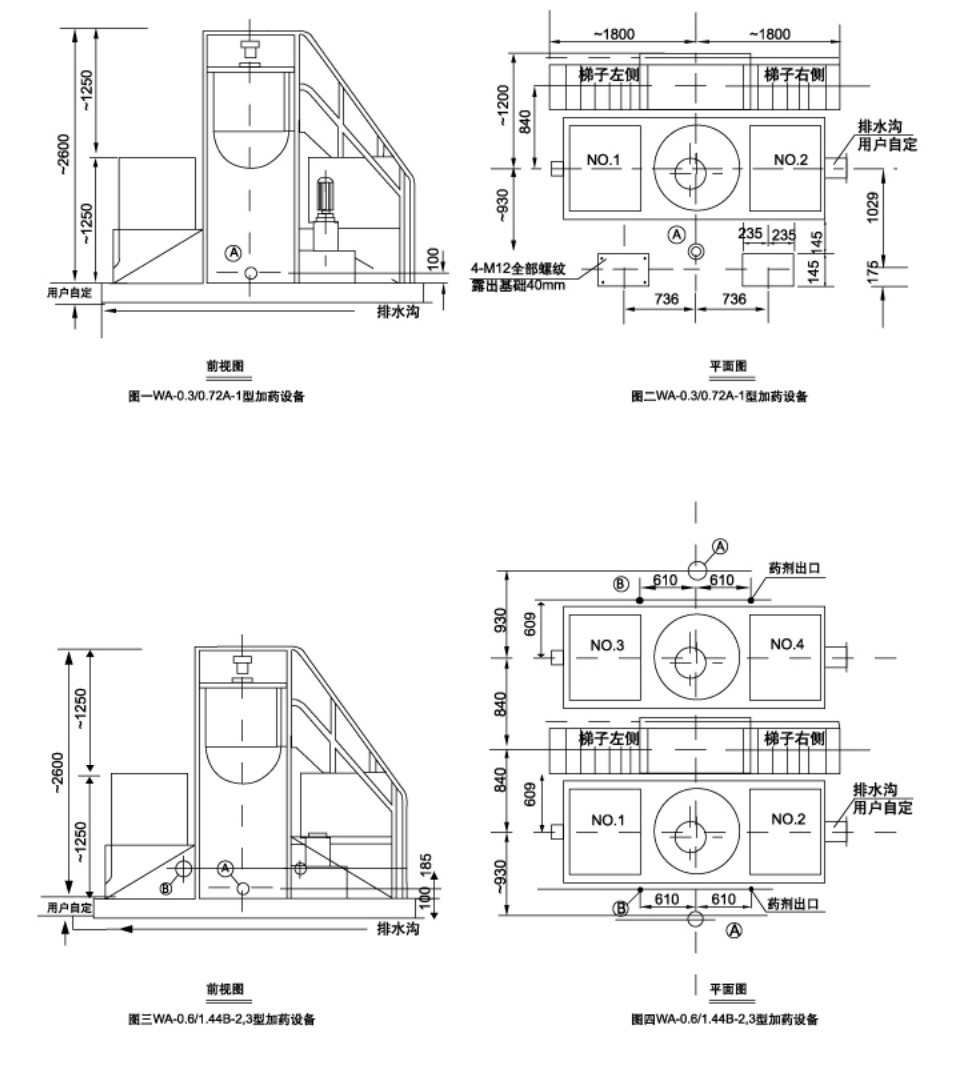

4. Appearance and installation dimensions diagram
