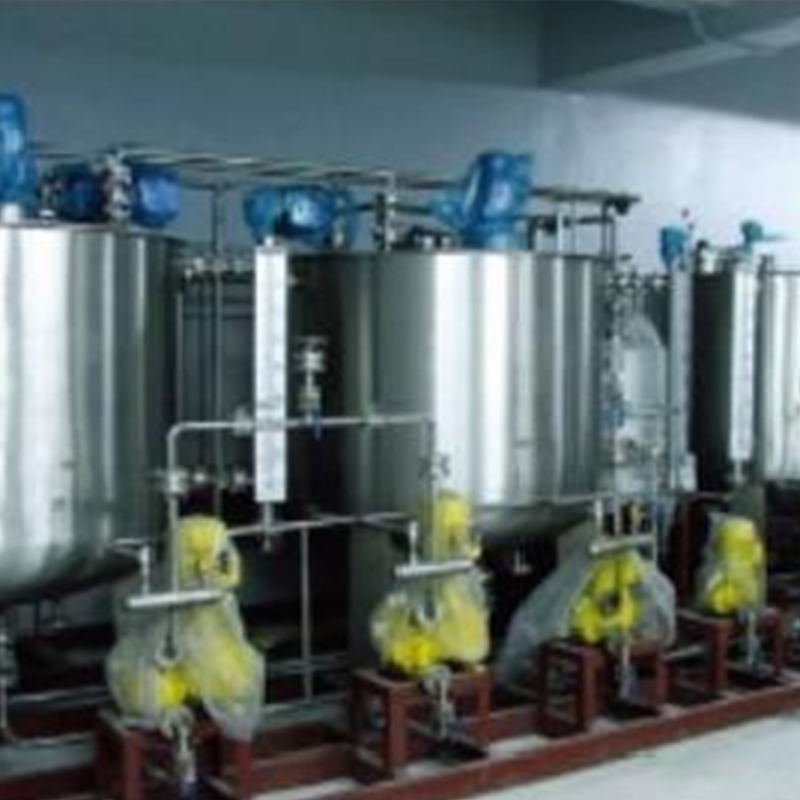

1. Technical characteristics
■Medicine tablet capacity: 40L, 120L, 200L, 500L, 1000L(1)
■Applicable metering pump capacity: from 0.02L/H to 1200L/H
■Medicine barrel material: PE material, resistant to chemical corrosion
■Liquid temperature: 60℃
■ Feeding/inspection hole: 40 to 200L medicine barrel: φ100mm
500 to 1000L medicine barrel: φ135mm
2. Model description
F series | capacity | mixer | Dimensions | Dosing metering pump | ||
model | Shaft length(mm) | Diameter(medium) | Height(H) | |||
FD-40 | 40L | 361 | 451 |
According to user requirements | ||
FD-120 | 120L | PFD-120 | 686 | 508 | 794 | |
FD-200 | 200L | PFD-200 | 863 | 470 | 1086 | |
FD-500 | 500L | PFD-500 | 1000 | 800 | 1150 | |

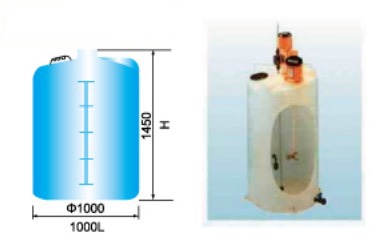

FD-1000 | 1000L | PFD-1000 | 1000 | 1000 | 1450 | |
3. Description of main accessories
■Corrosion-resistant mixer: 220V, 150HZ, 160W (optional)
■High/low liquid level switch: used to control automatic liquid feeding, start and stop dosing or alarm (optional)
■ Metering pump: Selection based on dosage
■Control box: can automatically control liquid inlet/sewage discharge (optional function), alarm, power supply (optional part)
4. Selection of small mixer and liquid level switch
model | Material | Technical specifications |
FD120 | 304SS Epoxy coating |
160W/1330rpm, 220V/50HZ |
FD200 | ||
LV20 LH21/2 (liquid level switch) | PP PVDF | Passive contact 0.6/7.6m |
5. Typical applications

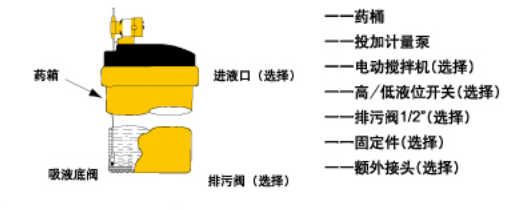

6. Configuration combination
7. Dosing metering pump selection table
Metering pump series | Flow range (L/h) | Pressure rangeMpa |
Choose according to user requirements | 0.79-95 | 0.17-2.07 |
10-1183 | 0.35-1.0 | |
1.25-329 | 1.0-1.24 | |
130-1100 | 1.0-2.8 |
