Sludge silo

Availability:

Inquire

Product Description

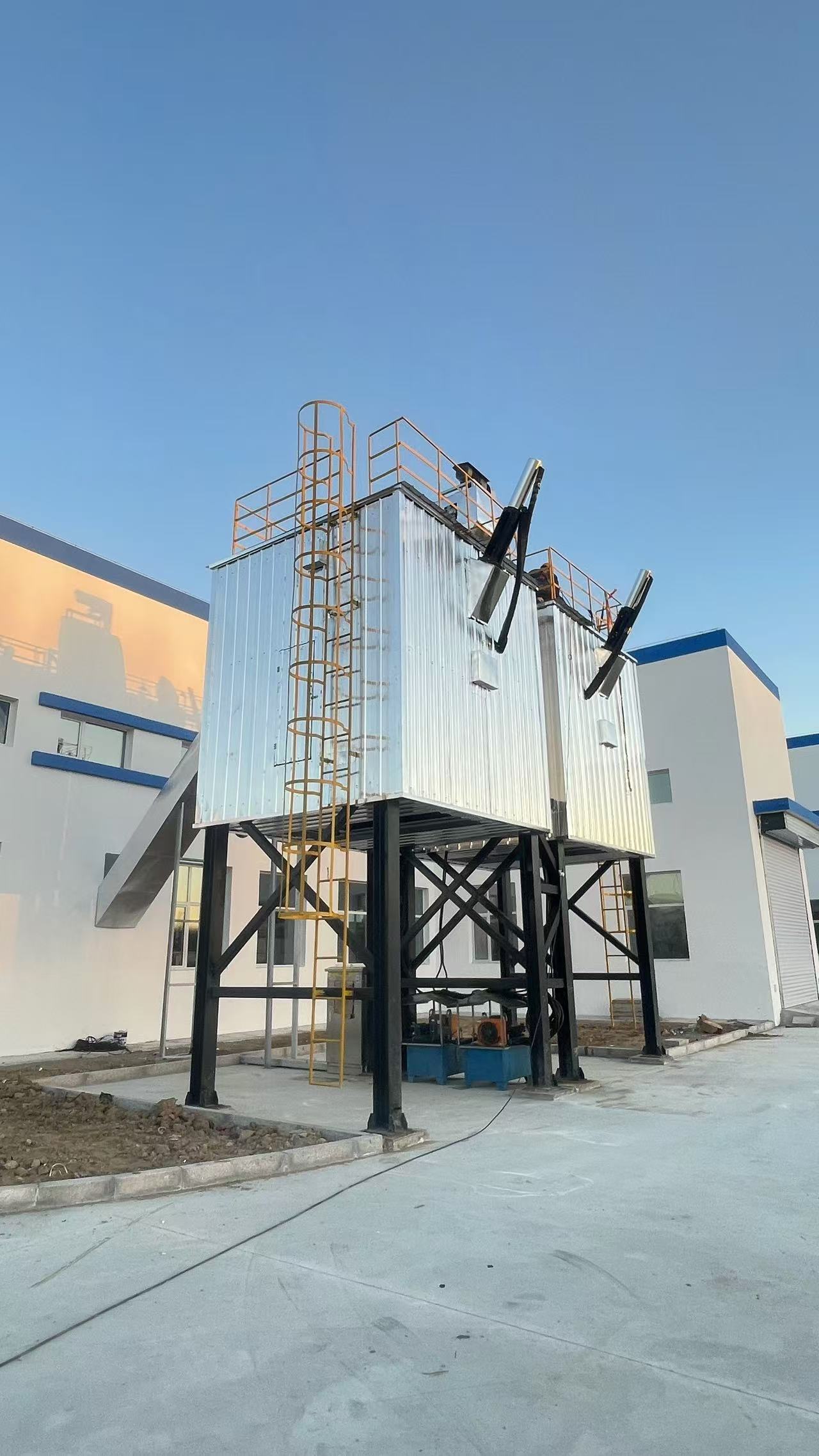

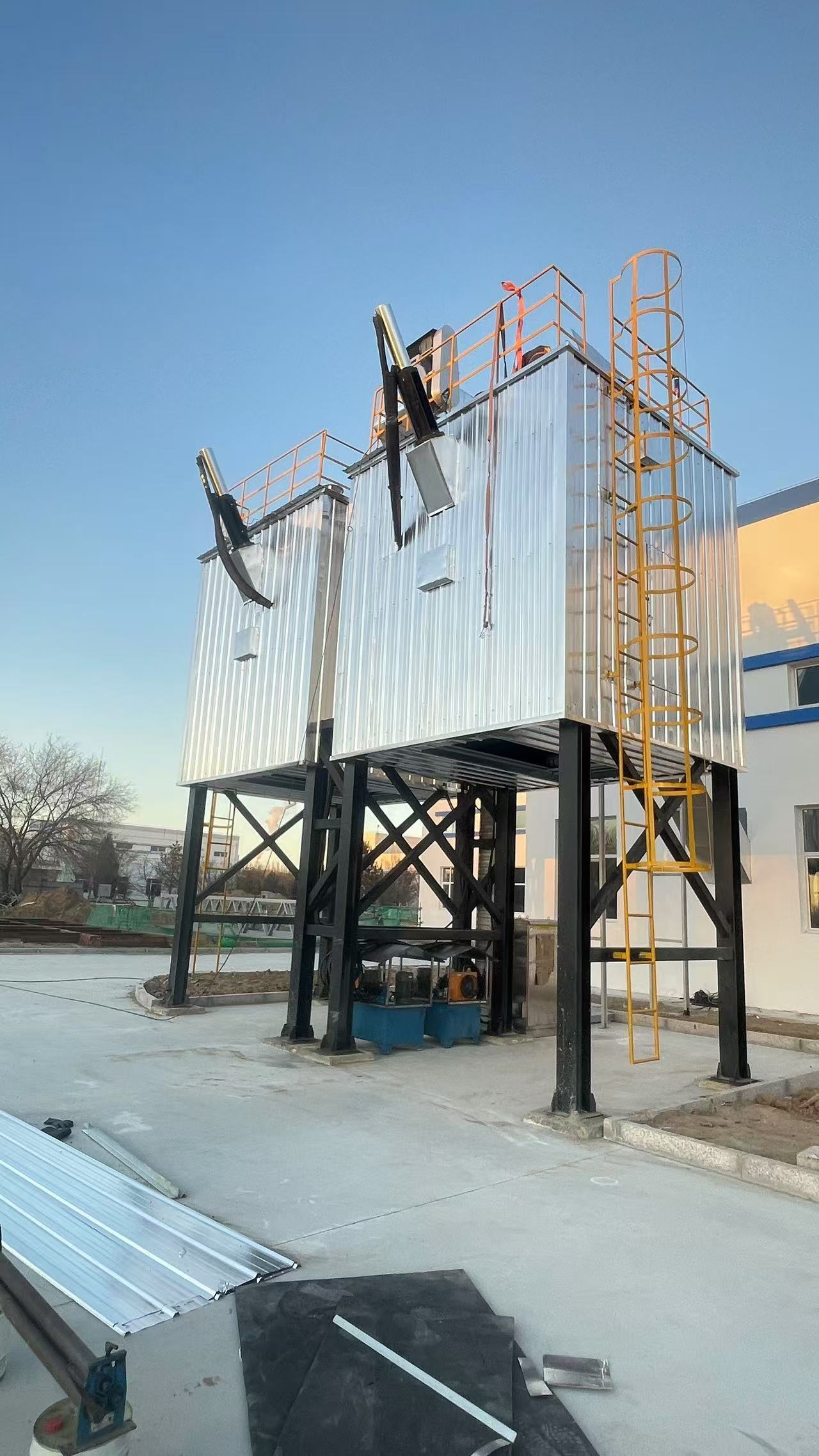

The sludge silo is a device used to temporarily store dewatered sludge . It is usually used to connect various links of sludge treatment, such as after sludge dehydration, before transportation, or before further processing such as semi-drying and incineration. It is mainly used to store sludge, prevent bridge clogging, and facilitate the transportation and subsequent processing of sludge through structures such as slide frames.

Main functions and functions

Storage function :
The primary function of the sludge silo is to temporarily store dehydrated sludge, especially when the sludge is transported or subjected to subsequent processing (such as semi-drying, incineration).
Connection process :
The silo and supporting conveying equipment connect different links in the sludge treatment process and are an important part of the sludge treatment process.
To prevent clogging :
The carriage design of the silo can solve the problem of sludge bridge blockage and ensure smooth discharge of sludge.

Main types

According to their role in the treatment process, sludge silos are mainly divided into three types:

Unloading silo : used for storage of dewatered sludge before loading onto trucks.
Intermediate silo : Integrated into the processing flow as an intermediate link in the process.

Technical features

Slide arch breaking technology : The reciprocating motion of the hydraulic slide is used to break the bridging phenomenon of sludge and prevent clogging.
Wear-resistant materials :: The slide block of the carriage is made of wear-resistant materials, which extends the service life of the equipment.
Wedge design : The wedge design of the carriage ensures that there is no dead space in the silo and all sludge can be discharged.
Side guide system : The side guide design of the carriage can prevent deviation and ensure the normal operation of the equipment.
